76 Series Heavy Duty Industrial Kingpinless Casters

Top Plate Information

Top Plate Size

5-1/4″ x 7-1/4″

Bolt Hole Spacing

3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

Attaching Bolt

1/2″

Series Specifications

Swivel Section

Patented Kingpinless single-ball bearing precision machined 3″ diameter raceway hardened to 50 Rockwell C with 1/2″ ball bearings.

Finish

Laguna blue paint

Wheel Size

6″ to 12″ diameter, 2-1/2″ to 3″ wide

Capacity

Up to 4,500 lbs

Options

Available swivel locks and brakes. Call for details.

Technical Drawings

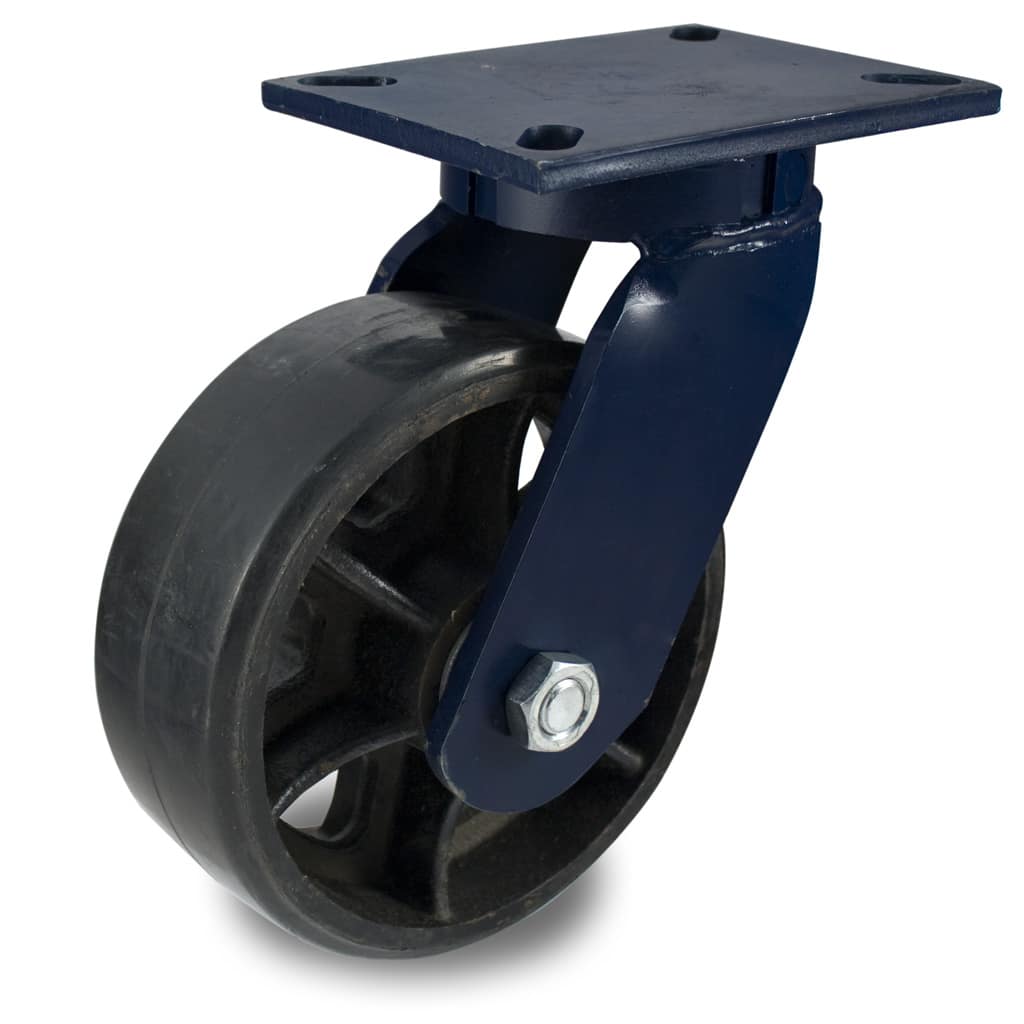

Economical, quiet wheel ideal for use on platform trucks or stock dollies. Floor protective, but may leave rubber scuffs when skidded.

6" x 3"

8" x 3"

10" x 3"

Inexpensive and durable. Phenolic wheels are high capacity and floor protective. Phenolic wheels should not be used in applications wet or high moisture applications.

6" x 2-1/2"

6" x 3"

8" x 2-1/2"

8" x 3"

10" x 2-1/2"

10" x 3"

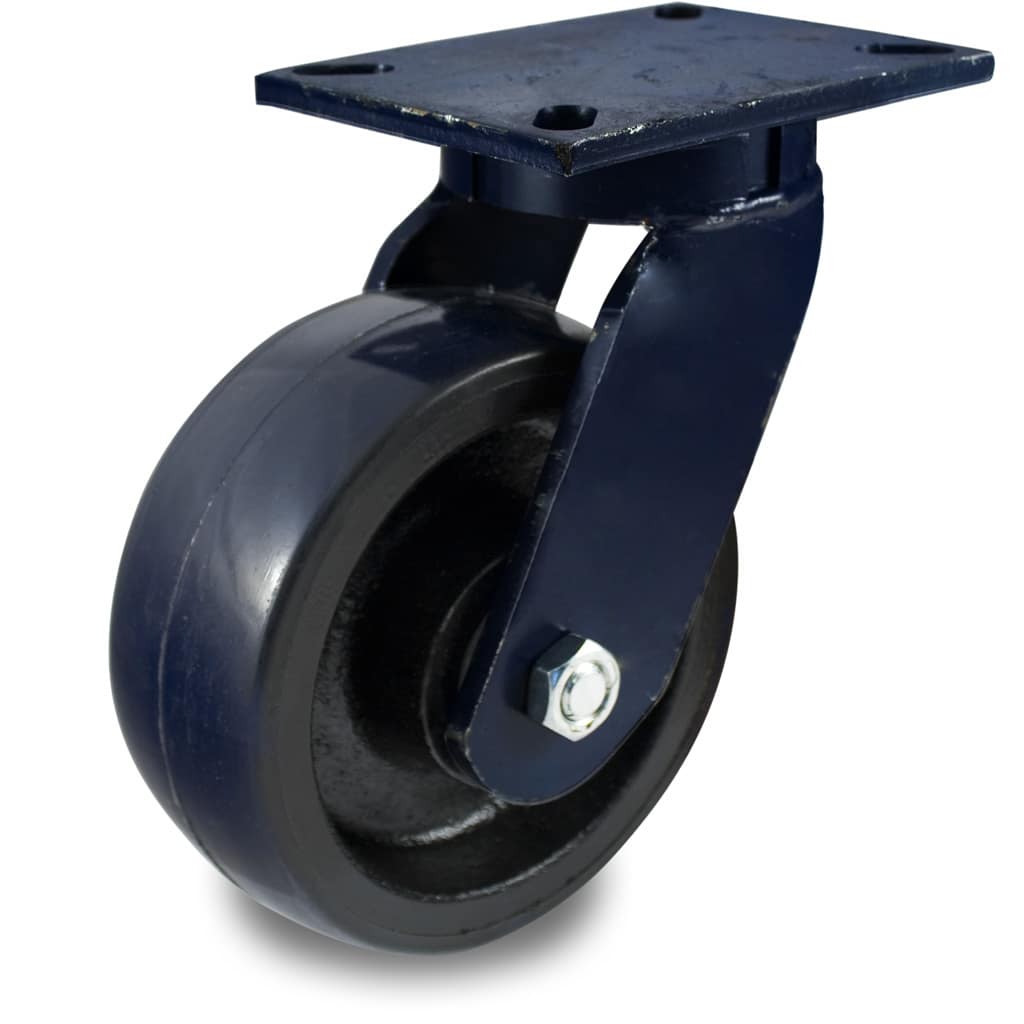

Durable, high-capacity wheels that fit almost any budget. Polyurethane tread is floor protective and non-scuffing.

6" x 2-1/2"

6" x 3"

8" x 2-1/2"

8" x 3"

10" x 3"

Made for the most abusive conditions, high-impact polymer wheels are excellent for heavy-duty applications. Solid nylon wheels are resistance to most chemicals and corrosion.

6" x 3"

8" x 3"

10" x 3"

High capacity and an affordable price. Cast iron wheels are great for heavy loads in industrial environments. Cast iron wheels can damage your floor.

6" x 3"

8" x 3"

10" x 3"

Our highest capacity metal wheel, forged steel stands up to abusive loading and rolls easily. Wheels are die-formed from pre-heated billets of steel.

6" x 2-1/2"

8" x 3"

10" x 3"

Designed to ride on inverted angle-iron track, v-groove cast iron wheels are ideal for transfer carts, shuttle conveyors, and other process equipment.

6" x 2-1/2"

8" x 3"
