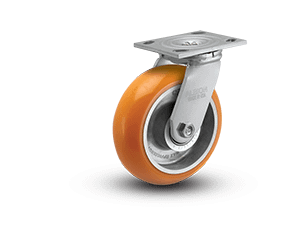

CG-MAX Wheels

Introducing the Most Efficient Wheel In Its Class

The CG-MAX wheel was designed and formulated to outperform, outlast, and take customer efficiency to the MAX. With best-in-class ergonomics and durability, this versatile polyurethane on aluminum wheel will drive new value into your operations. From improved material flow to safer workplaces, we encourage you to experience the real impact CG-MAX wheels will have on your business today!

  • Extended Swivel Lead: The longer swivel lead improves the caster’s track while also reducing flutter
  • Operational Efficiency: Improve material flow and reduce unwanted maintenance and replacement costs with a wheel that lasts more than 2x* longer than the leading competitor
  • Ergonomic Efficiency: Work safer by reducing the force required to initiate rolling equipment by over 26%*
  • Environmental & Assembly Efficiency: Reduce waste and assembly time with CG-MAX’s patent-pending self-retaining top hats that do not require zip ties when being shipped
Patent-pending self-retaining top hats
  • Material: Polyurethane on aluminum
  • Temperature Range: -40 to 180 Degrees F
  • Durometer: 85A
  • Tread Profile: Round
* Dynamic life and ergonomic comparative tests conducted to ANSI ICWM-2018 Performance and Testing Requirements (sections 6.9 and 6.3) in a Colson Group test facility. All sizes were tested at various capacities up to their maximum capacity to determine the average 26% ergonomic advantage; results may vary by customer due to equipment and flooring variables. All sizes were tested in dynamic life testing; the lowest comparative advantage value was used to claim 2x life advantage, some results were significantly higher.

Our 44 series casters are great all around casters commonly found on platform trucks, shop carts, u-boats and industrial equipment. The rigs are made in the USA for expedited shipping and improved quality assurance.

4" x 2"

  • Bearing: Precision Ball
  • Capacity: 800 lbs
  • Overall Height: 5-5/8"
  • Rigid: 44XOB42R
  • Swivel: 44XOB42S
  • Rigid: 44XMB42R
  • Swivel: 44XMB42S

5" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,000 lbs
  • Overall Height: 6-1/2"
  • Rigid: 44XOB52R
  • Swivel: 44XOB52S
  • Rigid: 44XMB52R
  • Swivel: 44XMB52S

6" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,250 lbs
  • Overall Height: 7-1/4"
  • Rigid: 44XOB62R
  • Swivel: 44XOB62S
  • Rigid: 44XMB62R
  • Swivel: 44XMB62S

8" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,250 lbs
  • Overall Height: 9-1/2"
  • Rigid: 44XOB82R
  • Swivel: 44XOB82S​
  • Rigid: 44XMB82R​​
  • Swivel: 44XMB82R​S

Brake options available: Total lock, grip lock, face, single/double sided, poly cam, swivel lock

The 48 series casters are ergonomically designed to be easier to use and quieter. The sealed precision ball bearing significantly reduces push/pull force, keeping equipment operations safer while improving efficiency.

4" x 2"

  • Bearing: Precision Ball
  • Capacity: 800 lbs
  • Overall Height: 5-5/8"
  • Rigid: 48XOB42R​
  • Swivel: 48XOB42S​
  • Rigid: 48XMB42R
  • Swivel: 48XMB42S​

5" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,000 lbs
  • Overall Height: 6-1/2"
  • Rigid: 48XOB52R​
  • Swivel: 48XOB52S​
  • Rigid: 48XMB52R​
  • Swivel: 48XMB52S​

6" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,250 lbs
  • Overall Height: 7-1/4"
  • Rigid: 48XOB62R
  • Swivel: 48XOB62S​
  • Rigid: 48XMB62R
  • Swivel: 48XMB62S​

8" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,250 lbs
  • Overall Height: 9-1/2"
  • Rigid: 48XOB82R​
  • Swivel: 48XOB82S​
  • Rigid: 48XMB82R​
  • Swivel: 48XMB82S​

Brake options available: Face, swivel lock

Our 68 series casters are designed specifically for the automotive industry’s rugged demands. The swivel casters use a sealed precision ball bearing in the swivel raceway which does not require routine maintenance. Precision wheel bearings also eliminate the need for lubrication.

6" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,250 lbs
  • Overall Height: 8-1/4"
  • Rigid: 68XOB62R​
  • Swivel: 68XOB62S​
  • Rigid: 68XMB62R​
  • Swivel: 68XMB62S​

8" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,500 lbs
  • Overall Height: 10-1/4"
  • Rigid: 68XOB82R​
  • Swivel: 68XOB82S​
  • Rigid: 68XMB82R​
  • Swivel: 68XMB82S​

Designed to handle impact and shock

For applications that require a rugged and impact resistant swivel section, our 71 series heavy duty kingpinless casters are the perfect solution. These are ideal for more ergonomic hand-pushed requirements or power-towed applications. The precision-machined raceway enhances ergonomics and safety while eliminating kingpin failure.

4" x 2"

  • Bearing: Precision Ball
  • Capacity: 800 lbs
  • Overall Height: 5-5/8"
  • Rigid: 71XOB42R​
  • Swivel: 71XOB42S​
  • Rigid: 71XMB42R​
  • Swivel: 71XMB42S​

5" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,000 lbs
  • Overall Height: 6-1/2"
  • Rigid: 71XOB52R​
  • Swivel: 71XOB52S​
  • Rigid: 71XMB52R​
  • Swivel: 71XMB52S​

6" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,250 lbs
  • Overall Height: 7-1/2"
  • Rigid: 71XOB62R​
  • Swivel: 71XOB62S​
  • Rigid: 71XMB62R​
  • Swivel: 71XMB62S​

8" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,500 lbs
  • Overall Height: 10-1/8"
  • Rigid: 71XOB82R​
  • Swivel: 71XOB82S​
  • Rigid: 71XMB82R​
  • Swivel: 71XMB82S​

Brake options available: PLB, face, single/double sided, poly cam, swivel lock

More stability and higher load capacities

Our 115 series is a dual wheel version of our 71 series, with the addition of a third full leg for greater durability. This durable dual wheel series provides easy turning and a sturdy footprint you can rely on.

4" x 2"

  • Bearing: Precision Ball
  • Capacity: 800 lbs
  • Overall Height: 5-7/8"
  • Rigid: 115XOB42R​
  • Swivel: 115XOB42S​
  • Rigid: 115XMB42R​
  • Swivel: 115XMB42S​

5" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,000 lbs
  • Overall Height: 6-3/4"
  • Rigid: 115XOB52R​
  • Swivel: 115XOB52S​
  • Rigid: 115XMB52R​
  • Swivel: 115XMB52S​

6" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,250 lbs
  • Overall Height: 7-3/4"
  • Rigid: 115XOB62R​
  • Swivel: 115XOB62S​
  • Rigid: 115XMB62R​
  • Swivel: 115XMB62S​

8" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,500 lbs
  • Overall Height: 10-1/8"
  • Rigid: 115XOB82R​
  • Swivel: 115XOB82S​
  • Rigid: 115XMB82R​
  • Swivel: 115XMB82S​

Better protection for equipment and floors

Our 141 Series casters feature a polyurethane spring, and are designed with features tailored to meet the varied needs of the aviation ground support equipment and automotive industries. These casters are equally at home in other extremely abusive and rugged applications. The durable and corrosion-resistant polyurethane spring helps protect cargo from unwanted vibration and damaging shocks. The solid spring material has no spring coil where debris can jam the spring action.

5" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,000 lbs
  • Overall Height: 7-1/2"
  • Rigid: 141XOB52R​
  • Swivel: 141XOB52S​
  • Rigid: 141XMB52R​
  • Swivel: 141XMB52S​

6" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,250 lbs
  • Overall Height: 8"
  • Rigid: 141XOB62R​
  • Swivel: 141XOB62S​
  • Rigid: 141XMB62R​
  • Swivel: 141XMB62S​

8" x 2"

  • Bearing: Precision Ball
  • Capacity: 1,500 lbs
  • Overall Height: 10-1/8"
  • Rigid: 141XOB82R​
  • Swivel: 141XOB82S​
  • Rigid: 141XMB82R​
  • Swivel: 141XMB82S​
