1-1/4″ x 2-3/8″
13/16″ x 1-1/4″ slotted to 1-7/8″
3/16″
Double ball swivel race for strength and durability
Available with top plates, grip ring stems, threaded stems, and hollow kingpins
Polished chrome
2″ to 3″ diameter, 1″ wide
Up to 175 lbs
Available total lock brakes
???

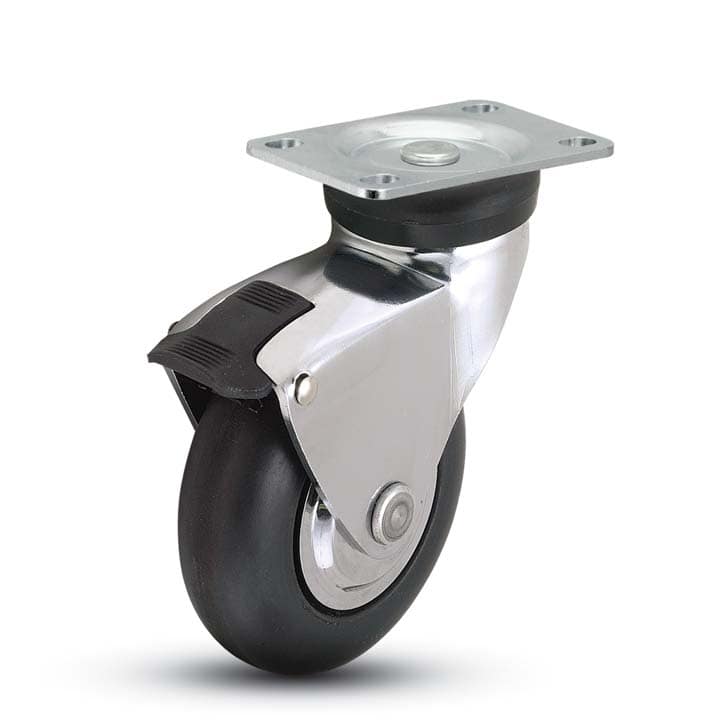

Top plates are excellent for retrofitting casters to existing furniture and case goods. As long as you have a flat surface, you can mount these casters.
All threaded stems are 3/8-16 UNC x 1" long
Normally found on formed and welded metal furniture, threaded stems are also found on wood furniture and attached with a T-nut.

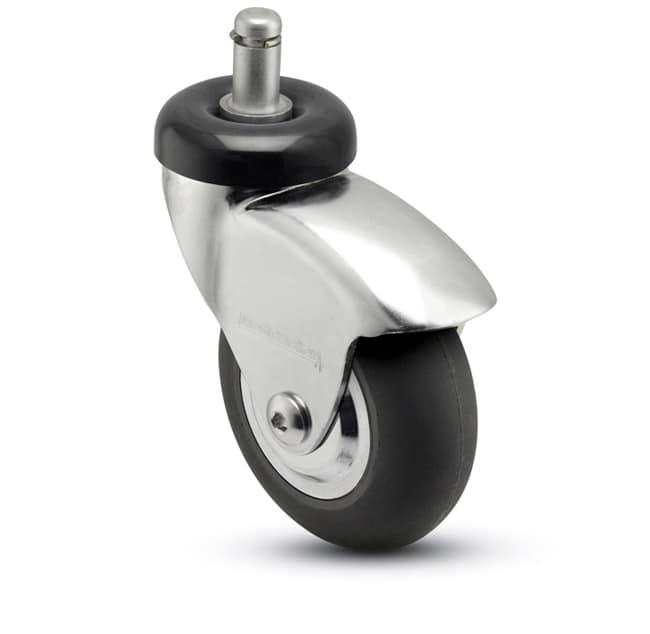

All grip ring stems are 7/16" diameter x 7/8" long
Commonly found on chairs, IV poles, and other equipment with multi-leg bases, grip ring stem casters fit into bored holes with a clearance fit.
All hollow kingpins are 3/8" diameter
Hollow kingpins allow for flush mounting using a simple thru-bolt. Use a 3/8″ bolt and these casters can be mounted to almost anything.
