Razer (RZ) Series Medical Casters

Top Plate Information

Top Plate Size

2-3/8″ x 2-3/8″

Bolt Hole Spacing

1.45″ x 1.45″ slotted to 1.85″ x 1.85″

Attaching Bolt

1/4″

Series Specifications

Swivel Section

Double ball swivel race for strength and durability

Mounting

Available with top plates, grip ring stems, threaded stems, and hollow kingpins

Finish

Polished chrome

Wheel Size

2″ to 5″ diameter, 7/8″ wide

Capacity

Up to 165 lbs

Options

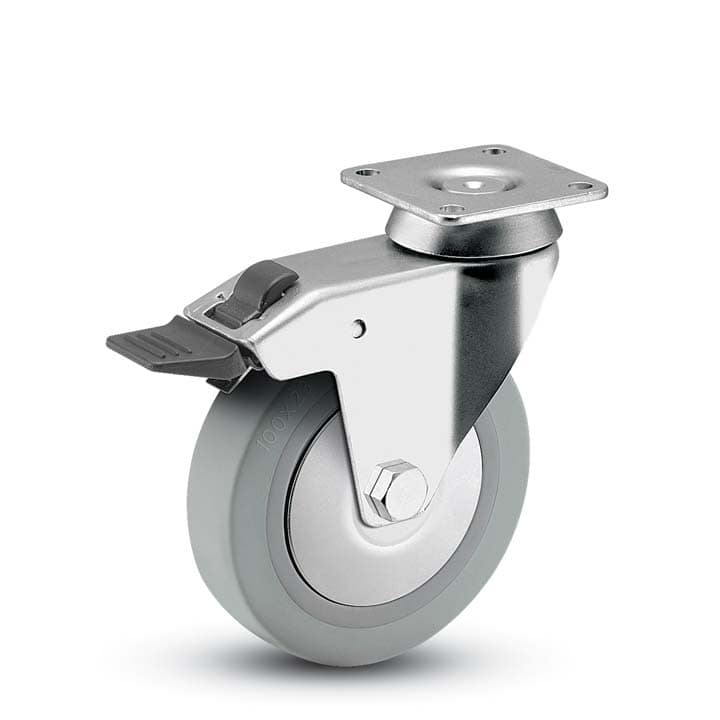

Available total lock brakes, direction locks, and anti-microbial wheels

Technical Drawings

???

Catalog Info

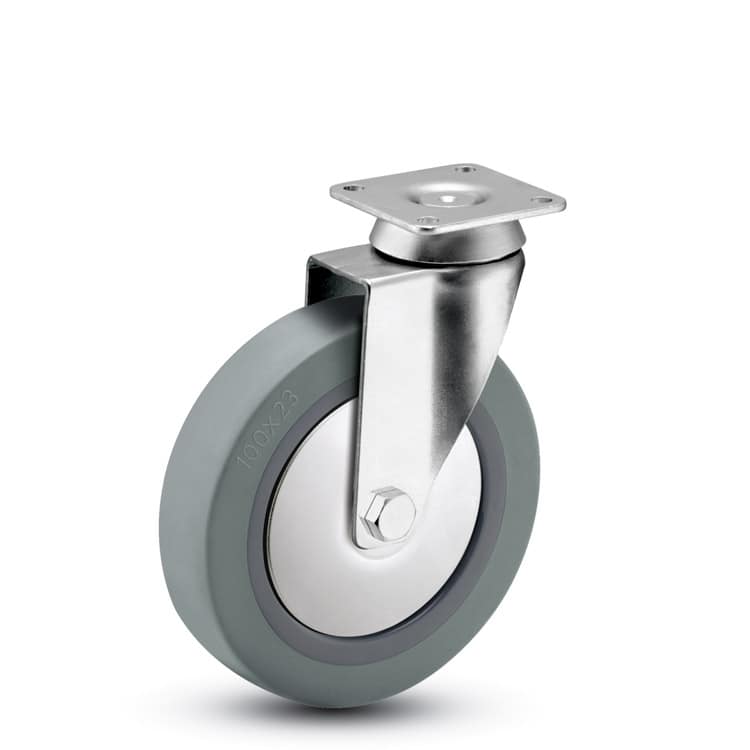

Top plates are excellent for retrofitting casters to existing furniture and case goods. As long as you have a flat surface, you can mount these casters.

2" x 7/8" TPR

2" x 7/8" Rubber

3" x 7/8" TPR

3" x 7/8" Rubber

4" x 7/8" TPR

4" x 7/8" Rubber

5" x 7/8" TPR

5" x 7/8" Rubber

All threaded stems are 3/8-16 UNC x 1" long

Normally found on formed and welded metal furniture, threaded stems are also found on wood furniture and attached with a T-nut.

2" x 7/8" TPR

2" x 7/8" Rubber

3" x 7/8" TPR

3" x 7/8" Rubber

4" x 7/8" TPR

4" x 7/8" Rubber

5" x 7/8" TPR

5" x 7/8" Rubber

All grip ring stems are 7/16" diameter x 7/8" long

Commonly found on chairs, IV poles, and other equipment with multi-leg bases, grip ring stem casters fit into bored holes with a clearance fit.

2" x 7/8" TPR

2" x 7/8" Rubber

3" x 7/8" TPR

3" x 7/8" Rubber

4" x 7/8" TPR

4" x 7/8" Rubber

5" x 7/8" TPR

5" x 7/8" Rubber

All hollow kingpins are 3/8" diameter

Hollow kingpins allow for flush mounting using a simple thru-bolt. Use a 3/8″ bolt and these casters can be mounted to almost anything.

2" x 7/8" TPR

2" x 7/8" Rubber

3" x 7/8" TPR

3" x 7/8" Rubber

4" x 7/8" TPR

4" x 7/8" Rubber

5" x 7/8" TPR

5" x 7/8" Rubber
