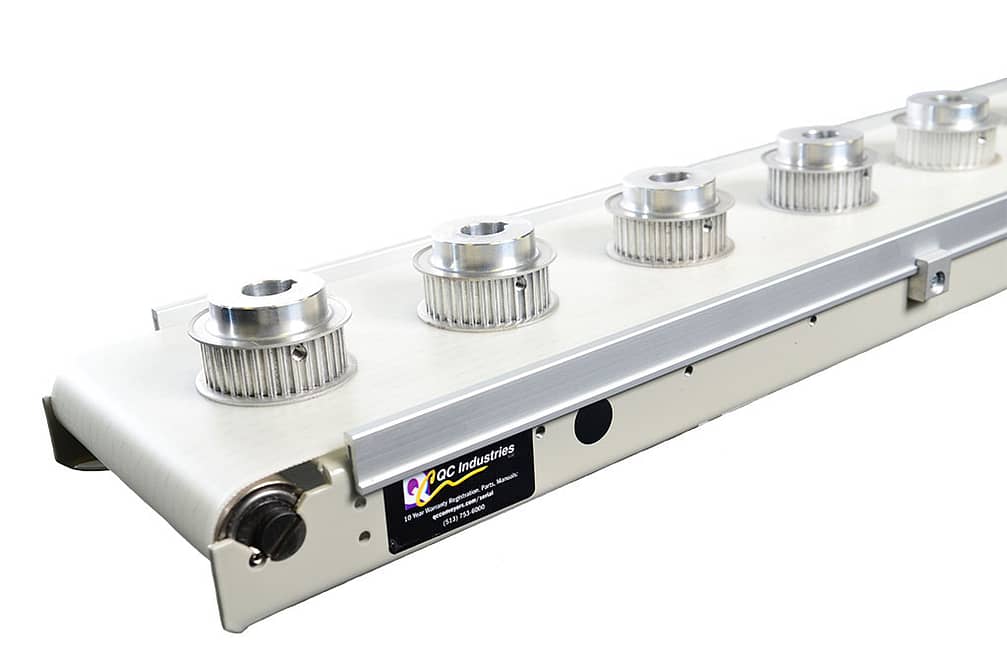

125 Series Low Profile Conveyor

Low profile conveyors are great for automation projects. Move small, delicate, or hard to handle parts from station to station. Low profile conveyors feature a razor-thin 1.89″ profile height.

Series Specifications

Belting

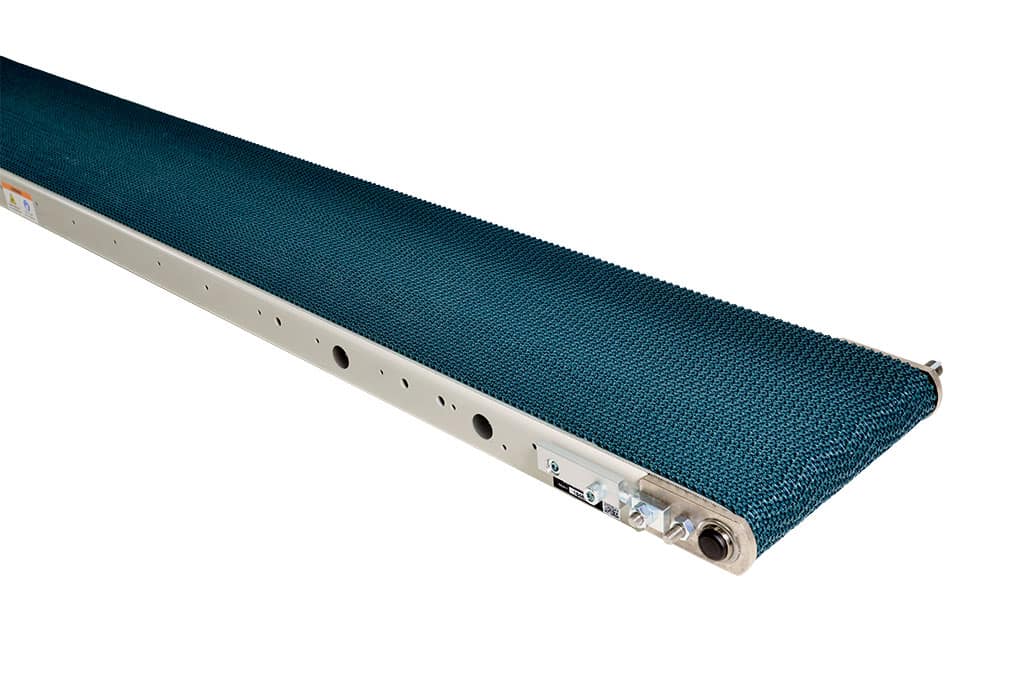

White urethane belt standard, optional belts are available.

Drive Assembly

Crowned sealed drive assembly with a straight knurl design to prevent premature wear and to promote superior belt tracking, equipped with sealed bearings, requiring no lubrication.

Tail Assembly

Crowned sealed tail assembly with straight knurl design to prevent premature belt wear with single point tension is achieved through a snap-in eccentric tail assembly to provide quick and easy belt change.

Widths

2″ to 24″ available

Lengths

24″ to 144″ available

Profile Height

1.89″

Load Capacity

Up to 450 pounds, width dependent

Speed Range

Up to 225 FPM

Drive Location

End-mounted per application

Floor Supports

Optional, available per application

Guard Rails

Optional, variety of styles offered

External Controls

Optional

Technical Drawings

  • 125 Series Low Profile Conveyor

A quick-release tail pulley makes belts changes
quick and painless.
