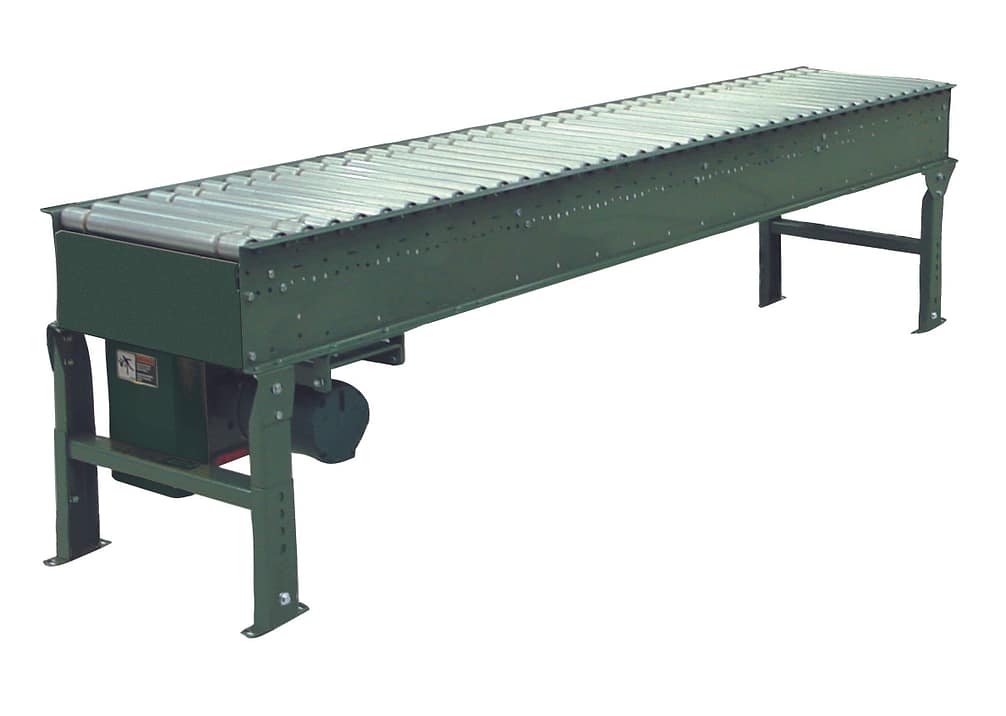

190-NSP Line Shaft Accumulation Conveyor

Our Model 190-NSP line shaft driven live roller conveyor is excellent for accumulation applications. Line shaft conveyors offer versatility on a single drive. Great for package and tote handling.

Series Specifications

Bed

Roller bed with 1.9″ diameter x 16 ga. galvanized tube rollers spaced every 3″. Mounted in a 6-1/2″ x 12 ga. powder-painted, formed-steel channel frame, bolted together with butt couplings.

Cross Bracing

Rods with turnbuckles are fastened to the underside of the bed to provide proper alignment of the bed rollers and ensure tracking. One cross brace is provided for, approximately, every 50′ of bed section.

Drive

Mounted underneath, positioned near the center of the conveyor. Please note that on conveyors less than 24″ wide, the motor extends beyond the frame. The chain guard is located on the left-hand side.

Drive-Shaft

1″ diameter steel shaft extends the full length of the conveyor. Chain couplings are used at bed joints. The drive-shaft is on the left-hand side.

Bearings

Tread and pressure rollers have pre-lubricated ball bearings. Flange and pillow block have sealed, pre-lubricated bearings with eccentric lock collars.

Speed Reduction

Sealed worm gear C-Face speed reducer with No. 50 chain to the drive shaft.

Conveying Speed

Constant 25 – 150 feet per minute.

Capacity

Maximum load per powered roller is 15 pounds. (Maximum capacity is reduced for conveyed products with soft or irregular bottoms).

Floor Supports

Optional

Technical Drawings

190-NSP Line Shaft Accumulation Conveyor
