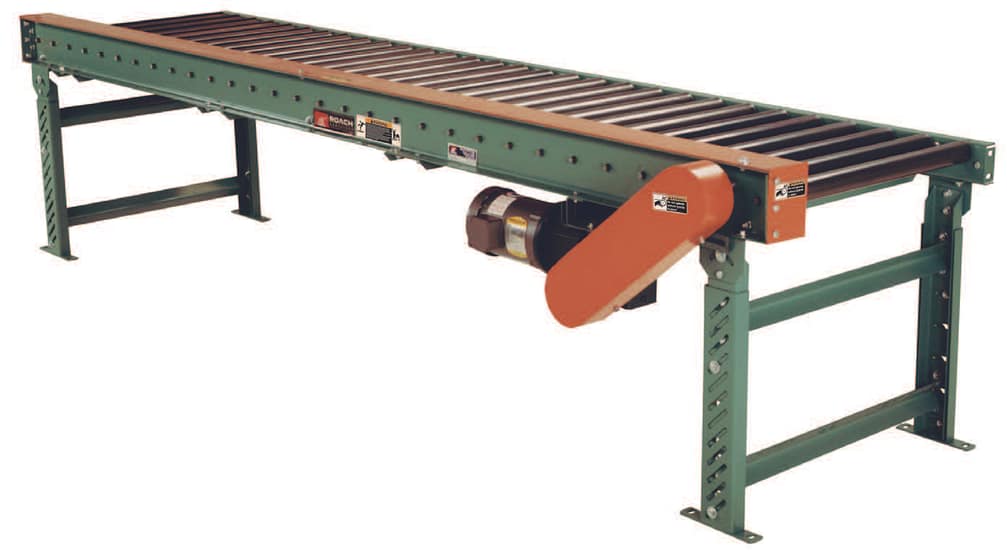

192CDLR – Roll-to-Roll Chain Driven Live Roller Conveyor

Model 192CDLR is a heavy duty chain driven live roller conveyor, specifically designed to transport medium-weight loads such as tote pans, castings, drums, pallet loads, and the like.

Series Specifications

Tread Rollers

1.9″ diameter x 12 gauge steel rollers, model 192S with sprockets.

Chain Drive

Roll-to-roll with No. 40 roller chain

Roller Centers

4″, 6″, 8″, or 12″

Center Drive

Reversible drive either side mounted or underside mounted (specify). The main drive roller is supported by precision, heavy duty, lubricated, ball bearing units.

Bearings

Removable type, zinc-plated, grease packed, labyrinth sealed.

Chain Guard

The chain drive is completely enclosed along the entire length of the conveyor.

Bed

Intermediate bed section lengths are available in 1′-0″ increments. Minimum overall conveyor length with drive 5′-0″. Maximum overall conveyor length 80′-0″.

Motor Drive

1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.

Speed

45 FPM constant, standard

Bed

5-1/2” x 1-1/2” x 10 ga. and 3-1/2” x 1-1/2” x 10 ga. formed steel channel frame.

External Controls

Optional

Warning

Prevent pinch points that exist when belt conveyors are permanently attached to other conveyors! Use connector brackets with safety pop-out roller (other stationary equipment will require proper guarding and safety devices supplied by others).

Technical Drawings

192CDLR Chain Driven Live Roller Conveyor

24-hour shipments available for
lengths from 5'-0" to 80'–0"
