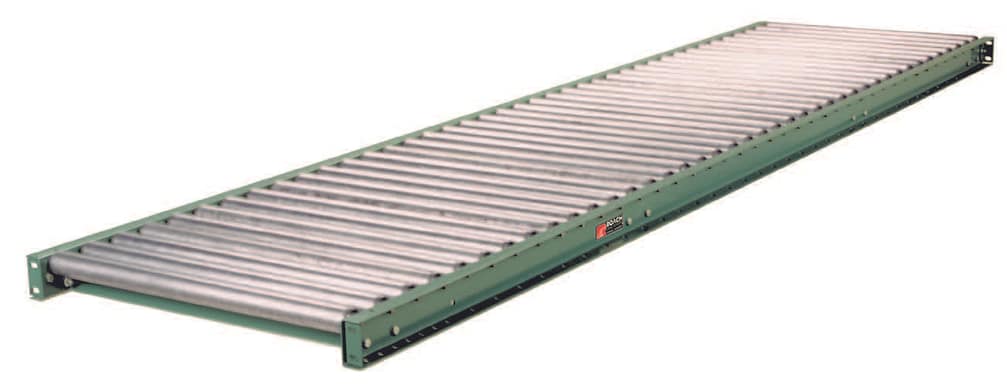

196G Medium Duty Gravity Roller Conveyor

Gravity roller conveyor gets the job done, without fail, because gravity never stops working for you. Tongue-in-cheek aside, gravity conveyors are durable and simple to use. Perfect for accumulating at the end of a powered conveyor section or queuing boxes for shipping.

Series Specifications

Rollers

1.9″ x 16ga galvanized steel tubing with smooth swaged ends

Frames

Formed steel painted channel 3-1/2″ x 1-1/2″ x 10 ga. for rollers set high, 4-1/2″ x 1-1/2″ x 10ga. for rollers set low. All frames have butt type couplings.

Axles

7/16″ hex shaft, spring loaded

Lengths

Available in 1′-0″ increments from 1′-0″ to 10′-0″

Bearings

Integral plain ball bearings, zinc plated and grease packed

Frame Capacity

250 lbs per roller or 1,300 lbs maximum distributed live load per 10′ section with supports at 10′ centers; 3,200 lbs with rollers at 5′ centers

Optional Frame

4″ x 5.4 lbs structural steel channel frame, rollers set at 3/16″ high, may vary due to structural tolerances

Warning

To prevent pinch points that exist when gravity conveyors are permanently attached to power conveyors, use connector brackets with safety pop-out rollers.

Technical Drawings

196G Medium Duty Gravity Roller Conveyors

Set Low
Set High

24-hour shipments available for
all 1-foot increments from 1'-0" to 10'–0"
