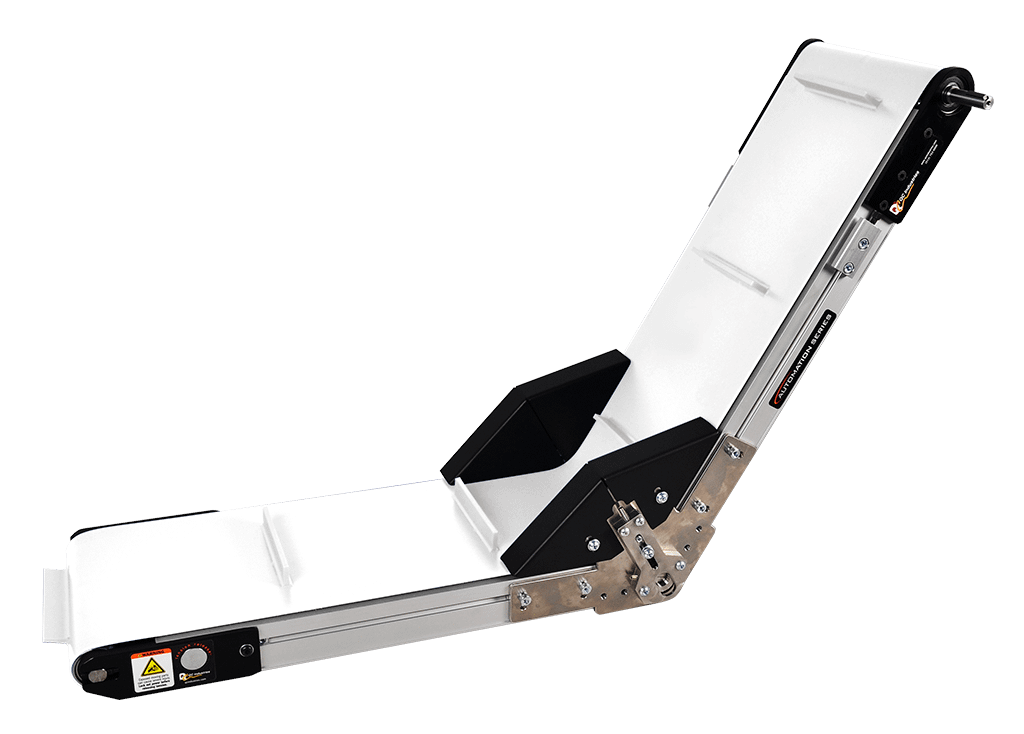

AS40 Automation Series Low Profile Conveyor

Series Specifications

Belting

White urethane belt standard, optional belts are available.

Drive Assembly

Crowned sealed drive assembly with straight knurl design to prevent premature belt wear. Helps promote superior belt tracking. Pulley preset for v-guided belts; equipped with sealed bearings, requiring no lubrication.

Tail Assembly

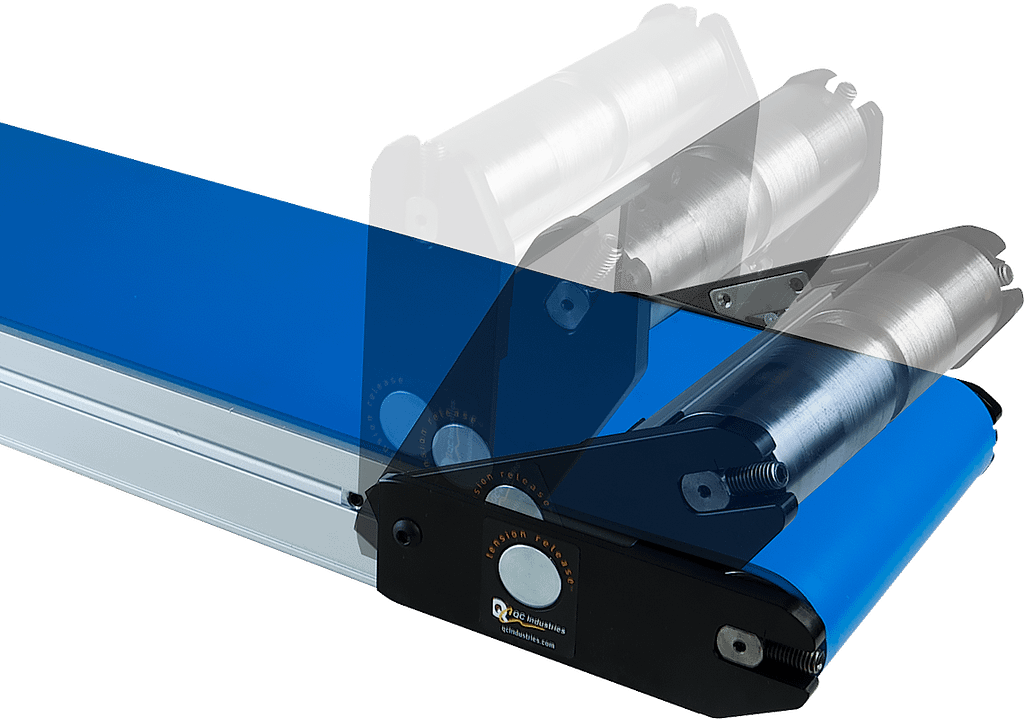

Crowned sealed tail assembly with straight knurl design to prevent premature belt wear. Helps promote superior belt tracking. Pulley preset for v-guided belts; equipped with sealed bearings, requiring no lubrication. Assembly releases with a patented Tension Release© system; provides automatic and proper tensioning of the belt.

Widths

2″ to 24″ available

Lengths

18″ to 240″ available

Profile Height

1.95″

Load Capacity

Up to 120 pounds, width dependent

Speed Range

Up to 400 FPM

Drive Location

End-mounted, rotationally adjustable through 270 degrees

Floor Supports

Optional, available per application

Guard Rails

Optional, variety of styles offered

External Controls

Optional

Technical Drawings

  • AS40 Automation Series Low Profile Belt Conveyor

Rigid aluminum frame features tee slots for rapid accessory mounting
