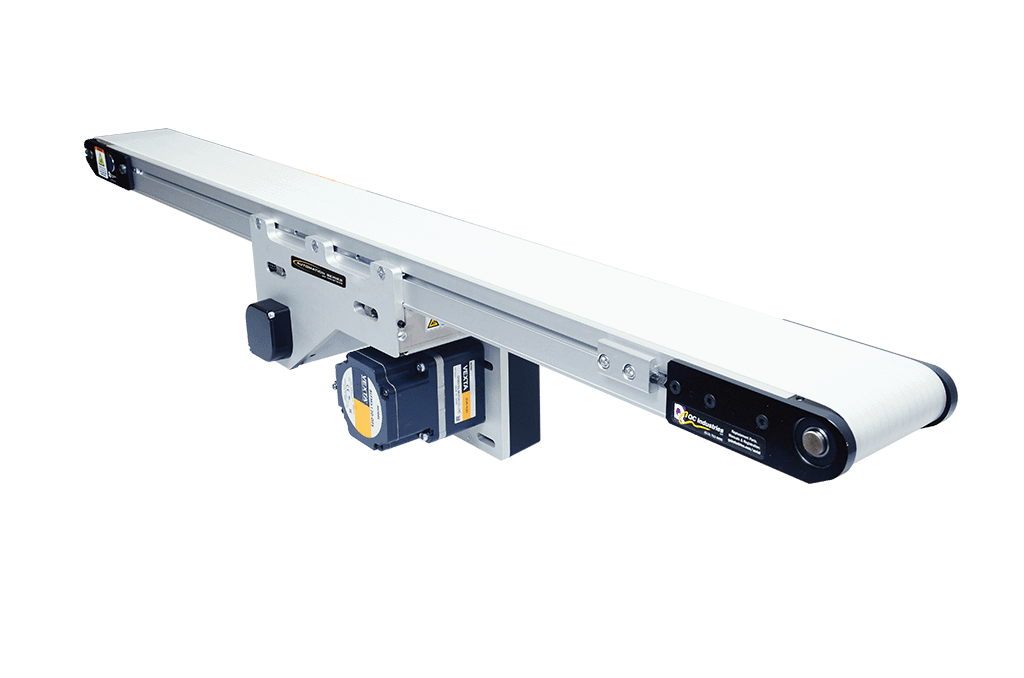

AS65 Automation Series Center Drive Low Profile Conveyor

Series Specifications

Belting

White urethane belt standard, optional belts are available.

Drive Assembly

Crowned sealed drive assembly with straight knurl design to prevent premature belt wear. Helps promote superior belt tracking. Pulley preset for v-guided belts; equipped with sealed bearings, requiring no lubrication.

Tail Assembly

Crowned sealed tail assembly with straight knurl design to prevent premature belt wear. Helps promote superior belt tracking. Pulley preset for v-guided belts; equipped with sealed bearings, requiring no lubrication. Assembly releases with a patented Tension Release© system; provides automatic and proper tensioning of the belt.

Widths

2″ to 24″ available

Lengths

Up to 26′ available

Profile Height

1.95″

Load Capacity

Up to 120 pounds, width dependent

Speed Range

Up to 400 FPM

Drive Location

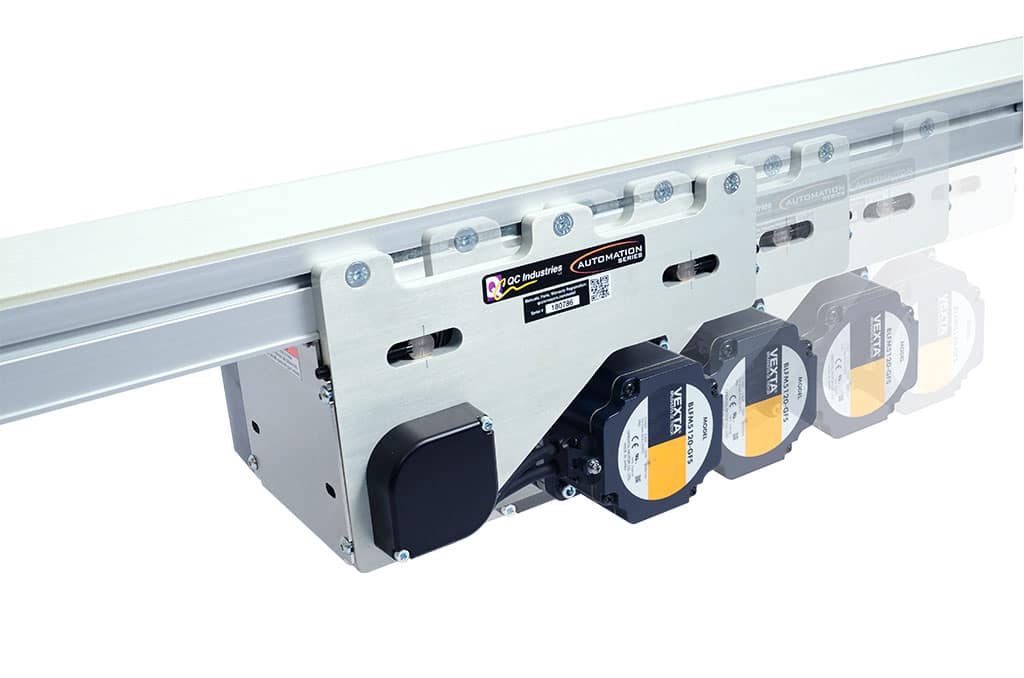

Center drive style, position adjustable along length of conveyor

Floor Supports

Optional, available per application

Guard Rails

Optional, variety of styles offered

External Controls

Optional

Technical Drawings

AS65 Automation Series Center Drive Low Profile Belt Conveyor

Rigid aluminum frame features tee slots for rapid accessory mounting
