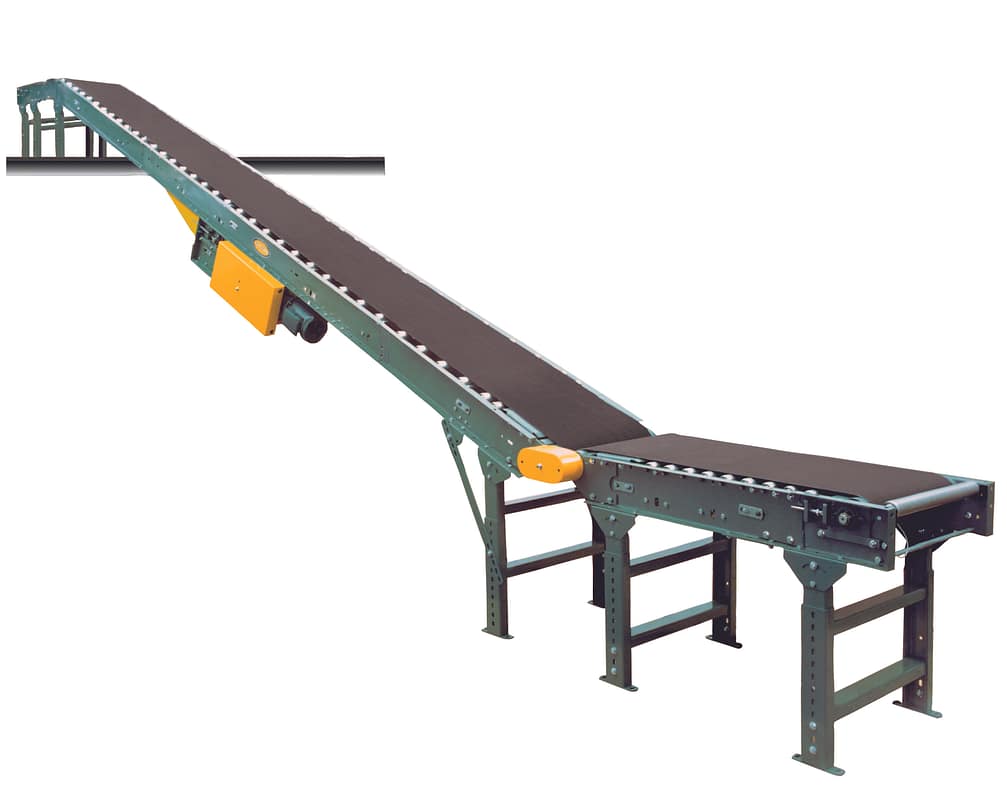

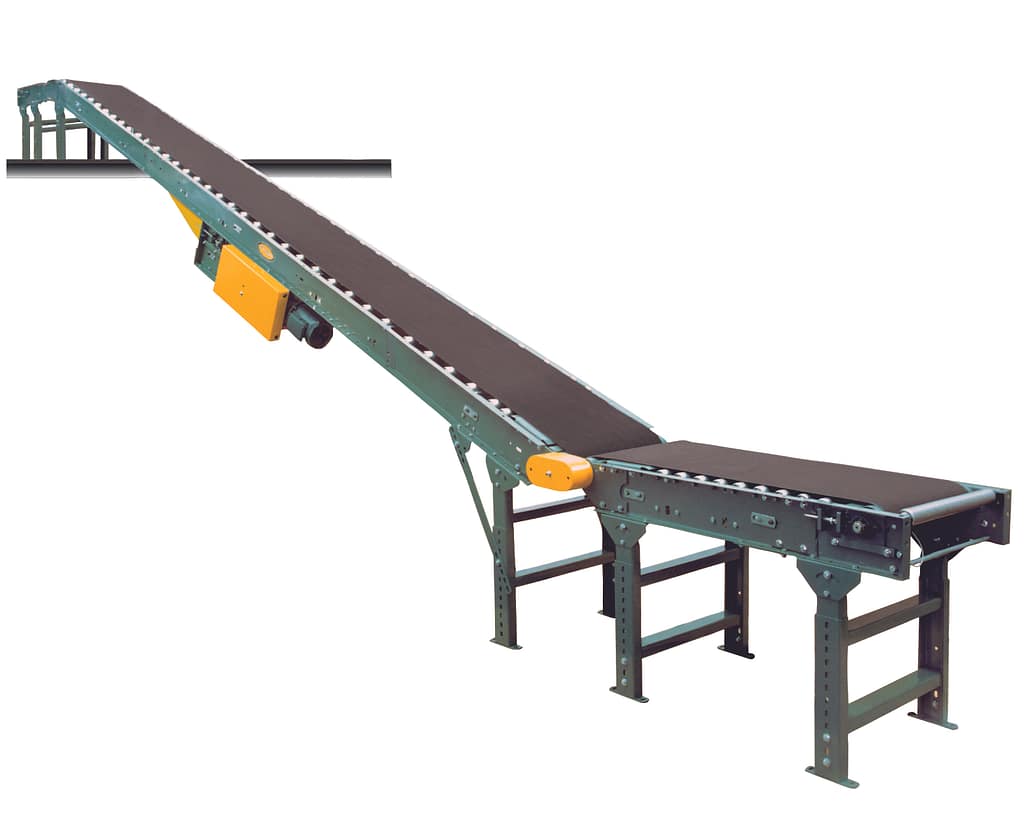

RBI Roller Bed Floor-to-Floor Incline Belt Conveyor

Our Model RBI makes moving parcels, crates, packages, and other material between floors a breeze. It is equipped with an adjustable double nose-over at the discharge end to ensure a smooth transfer from the inclined plane to the horizontal plane. This conveyor is sometimes used as a booster in a gravity conveyor system.

Series Specifications

Belting

Black Trackmate 120 rough-top with PVC cover, clipper lacing

Drive Pulley

8″ diameter with 1-7/16″ diameter shaft at bearings, machine crowned and fully lagged.

Tail Pulley

4″ diameter with 1″ diameter shaft at bearings or 6″ diameter with 1-3/16″ diameter shaft at bearings, machine crowned.

Bed

Roller bed with 1.9″ diameter x 16 ga. galvanized tube rollers spaced every 6″. Mounted in 6-1/2″ x 12 ga. powder-coated formed-steel channel frames.  Standard 4′, 6′, 8′, and 10′ long bed sections bolt together with splice plates.

Center Drive

Located on the incline section. The chain guard is located on the left-hand side.

Take-Up

Take-ups in the center-drive provide 16″ of belt take-up.

Bearings

Sealed, pre-lubricated, self-aligning ball bearings on drive and tail pulleys

Snub Idler / Nose-Over Rollers

Adjustable 2-1/8″ diameter roller. Pre-lubricated ball bearings, guards included.

Return Idlers

Adjustable 1.9″ diameter rollers, pre-lubricated ball bearings

Belt Speed

65 FPM constant, standard

Motor Drive

1HP – 207/230/460/575V, 3PH, 60Hz Totally Enclosed C-Face “SSB” Brake Motor (6 ft. / lb.)

Speed Reduction

Sealed worm gear C-Face speed reducer.

Roller Chain

No. 50 roller chain to drive pulley

External Controls

Optional

Warning

Prevent pinch points that exist when belt conveyors are permanently attached to other conveyors! Use connector brackets with safety pop-out roller (other stationary equipment will require proper guarding and safety devices supplied by others).

Technical Drawings

  • RBI Roller Bed Floor-to-Floor Incline Belt Conveyor
