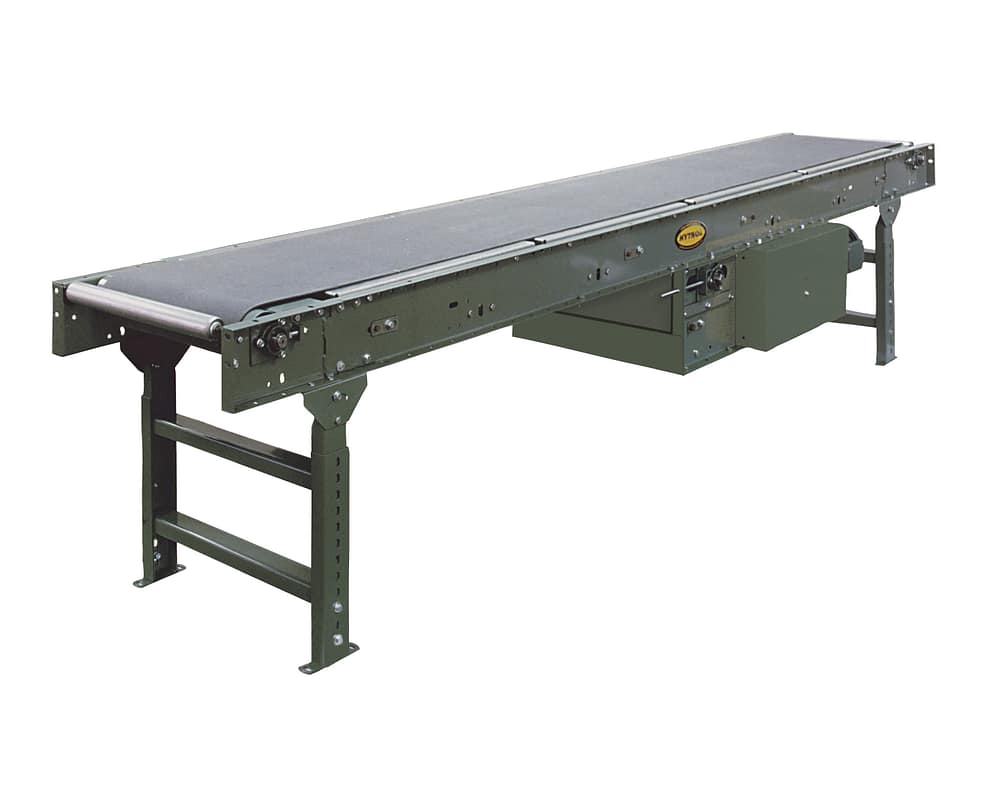

SB Slider Bed Horizontal Belt Conveyor

Hytrol Conveyor Company is a world leader in the design and manufacture of conveyors and material handling systems, including slider bed conveyors. Our Model SB slider bed horizontal belt conveyors are great all-around conveyor systems. They are designed with channel frames and bolt-in pans for strength and durability. The frame design makes them ideal for matching up with roller bed conveyors. A true utility player, Conveyer & Caster is your source for slider bed conveyors.

Series Specifications


Ultimate 140 BBS Nitrile

Drive Pulley

8″ diameter with 1-7/16″ diameter shaft at bearings, machine crowned and fully lagged

Tail Pulley

4″ diameter with 1″ diameter shaft at bearings or 6″ diameter with 1-3/16″ diameter shaft at bearings, machine crowned.


12 ga. galvanized slider pan mounted in 6-1/2″ x 12 ga. powder-painted formed-steel channel frame, bolted together with splice plates.

Center Drive

Provides 16″ of belt take-up. Requires a minimum top-of-belt elevation of 17-3/4″. Without modification, the minimum overall length is 10′. The chain guard is located on the left-hand side.


Take-up in center drive provides 16″ of belt take-up.


Sealed, pre-lubricated, self-aligning ball bearings on drive and tail pulleys

Snub Idler

Adjustable 2-1/8″ diameter roller, pre-lubricated ball bearings

Return Idlers

Adjustable 1.9″ diameter rollers, pre-lubricated ball bearings

Belt Speed

65 FPM constant, standard

Motor Drive

1HP – 207/230/460/575V, 3PH, 60Hz Premium, Energy Efficient C-Face Motor

Speed Reduction

Sealed worm gear C-Face speed reducer.

Roller Chain

No. 50 roller chain to drive pulley

External Controls



Prevent pinch points that exist when belt conveyors are permanently attached to other conveyors! Use connector brackets with safety pop-out roller (other stationary equipment will require proper guarding and safety devices supplied by others).

Technical Drawings

  • SB Slider Bed Horizontal Belt Conveyor
