TR Trough Bed Belt Conveyor

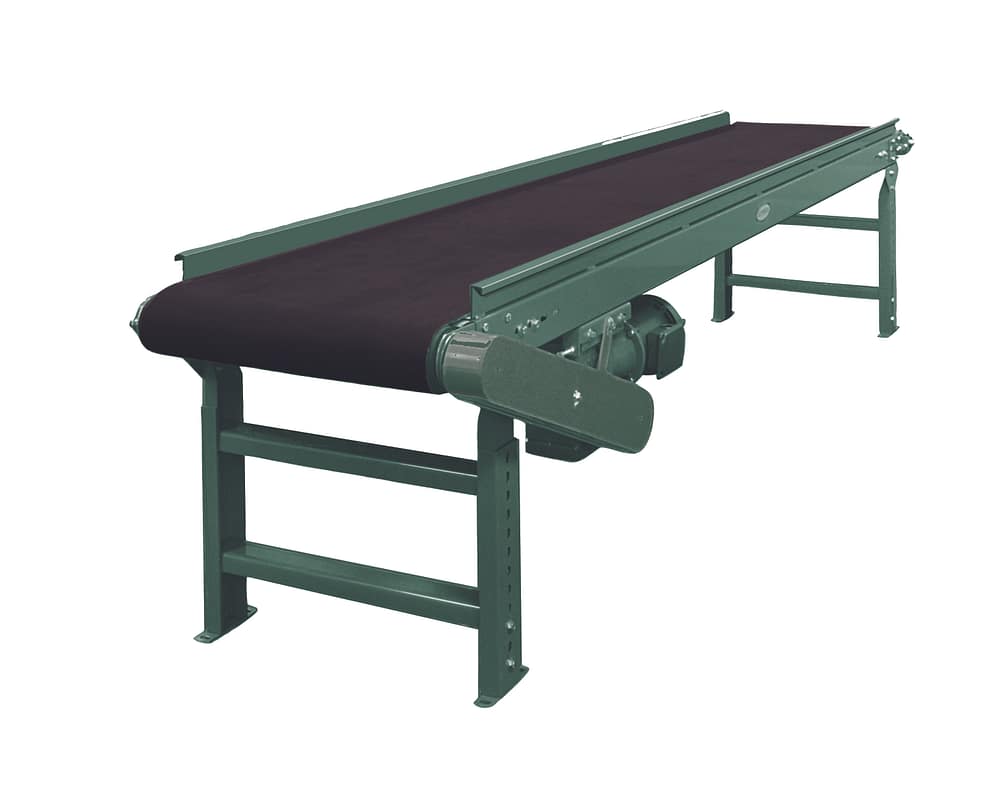

Model TR troughed slider bed belt conveyors are great for overhead conveying applications with their built-in guard rails. Perfect for moving boxes, cartons, cases, bags, and the like. Can work for loose parts, as well.

Series Specifications

Belting

Ultimate 140 BBS Nitrile

Drive Pulley

4″ diameter with 1″ diameter shaft at bearings or 8″ diameter with 1-3/16″ diameter shaft at bearings, machine crowned and fully lagged

Tail Pulley

4″ diameter with 1″ diameter shaft at bearings, machine crowned

End Drive

Located on discharge end of conveyor, chain guard on left-hand side

Take-Up

Take-ups at the tail pulley. Provides up to 4″ of belt take-up.

Bearings

Sealed, pre-lubricated, self-aligning ball bearings on drive and tail pulleys

Snub Idler

Adjustable 2-1/8″ diameter roller, pre-lubricated ball bearings

Return Idlers

Adjustable 1.9″ diameter rollers, pre-lubricated ball bearings

Belt Speed

65 FPM constant, standard

Motor Drive

1/2 HP, 230V/460V/3PH, 60Hz, totally enclosed C-face.

Speed Reduction

Sealed worm gear C-Face speed reducer.

Floor Supports

Optional

Roller Chain

No. 50 roller chain to drive pulley

External Controls

Optional

Warning

Prevent pinch points that exist when belt conveyors are permanently attached to other conveyors! Use connector brackets with safety pop-out roller (other stationary equipment will require proper guarding and safety devices supplied by others).
