The Dos and Don’ts of Pallet-Racking Systems

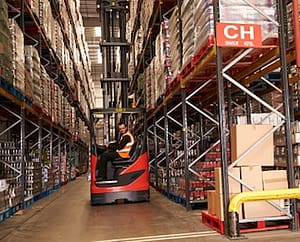

Warehouse Pallet-Racking System

Using proper pallet-racking systems can help companies operate more efficiently by improving material flow and increasing usable vertical space. However, pallet-racking safety is a critical issue for any company using one of these complex industrial racking systems. Accidental damage in an industrial facility is inevitable, unfortunately. Damaged pallet-racking systems are particularly dangerous. They can topple, damaging products, facilities, and equipment, or worse, injuring people. Injuries from collapsing pallet-rack systems are often severe—and sometimes fatal.

Every employee deserves a safe working environment, which is why Conveyer & Caster has compiled a list of helpful dos and don’ts for how to use your warehouse-racking system properly. These tips will help ensure the safety of your most important asset—your employees.

Do: Consider Your Facility Space Before Selecting a System

When choosing a new warehouse-racking system, your facility’s physical space is a major consideration. It will help determine the type of pallet racking that’s right for your application. Also, consider the placement of the system in that area. For example, if you’re using a forklift to move and rearrange pallets, make sure there’s enough space to maneuver around the racking. You’ll want to check your local fire code. Your municipality may require a sprinkler system be installed within the pallet-rack system, depending on what you’re storing, how much you’re storing, and the size of your system.

It’s also important to get a racking system that can handle the correct amount of weight for the type of materials you’re storing. Always be mindful of your system’s capacity. Adding capacity labels to your beams is a great way to avoid overloading.

Don’t: Be in the Dark — Know Your Pallet-Racking System Options

Teardrop Style Pallet Racks: Boltless, teardrop pallet-rack systems feature closed-tube formed uprights and beams. Closed-tube upright construction helps prevent damage from impact and sideswipe while loading and unloading. Teardrop beams and uprights interchange with almost any manufacturer’s teardrop system.

Structural Style Pallet Racks: For super high-capacity applications, like die and tooling storage, structural steel pallet racks are the way to go. Beams are bolted to uprights with bolts at each end to provide shelf capacities up to 20,000 pounds.

Double-Deep Pallet Racks: Double-deep pallet-racking systems use 11-foot aisles but include a double-deep access system. This is achieved by placing two sections of pallet rack back to back, effectively increasing storage capacity while maintaining one access aisle.

Push-Back Pallet Racks: Push-back pallet racking is an alternative method that is continuing to grow in popularity. This system can go two to six pallets deep and uses the first in, last out product flow system in any given lane. Push-back pallet racks tend to give building owners/operators more flexibility than others.

Pallet Flow Racks: Pallet flow racking differs from push-back racking in the sense that it utilizes the first in, first out methodology. As a result, this type of pallet-racking system is considered ideal for the food industry.

Drive-In Style Pallet Racks: For cost-effective, high-density storage, drive-in/drive-thru pallet racking is often the best choice. Requiring fewer aisles, and providing better space utilization than standard selective pallet racks, drive-in/drive-thru racking allows you to store up to 75% more pallets.

Ultimately, there are a variety of industrial racking systems you can implement in your warehouse to increase space that doesn’t include an expansion. Pay attention to your specific operational requirements and work with a material handling expert to find the best solution for you.

Floating Conveyor Case Study

Do: Build Processes Around Reporting Damage

Safety is important all over your facility, including in the warehouse. Identify a way for forklift drivers to report damage—when they see something, they need to say something. Pallet racks require regular inspection, and rapid reporting and identification are critical.

 Identifying, Repairing and Replacing: Adhere to the standards addressed by the American National Standards Institute/Rack Manufacturers Institute MH16.1.

As the owner of a racking system, it is your responsibility to ensure the safety of the rack at all times. Here are some processes to consider implementing:

  • Conduct frequent assessments
  • Periodically hire a company to help with these assessments
  • Immediately fix damage; commonly found damage can include: column damage, horizontal and diagonal strut damage, foot plate damage, overloaded or damaged beams, missing or damaged components, and leaning frames

Don’t attempt makeshift repairs—they must meet all the requirements of the original installation. A professional will be able to address issues with columns, struts, footplates, beams, components, and frames to ensure the system is structurally sound and safe—or they will recommend replacement when repair is not feasible or practical.

Don’t: Avoid Problems When You See One

If you see something—say something. Your eyes don’t lie—damage to pallet-racking systems is oftentimes visually identifiable. Uprights can become damaged, forklifts may cause torsion—no damage is too minor. When pallet-racking systems fail, people can die. Make sure your employees know how to report racking system issues when they see one.

Conveyer & Caster in Cleveland, Ohio, has provided material handling solutions for more than 50 years. The team offers creative solutions for unique manufacturing and distribution challenges and can assist with all your pallet-racking needs. Contact us today to learn more.
