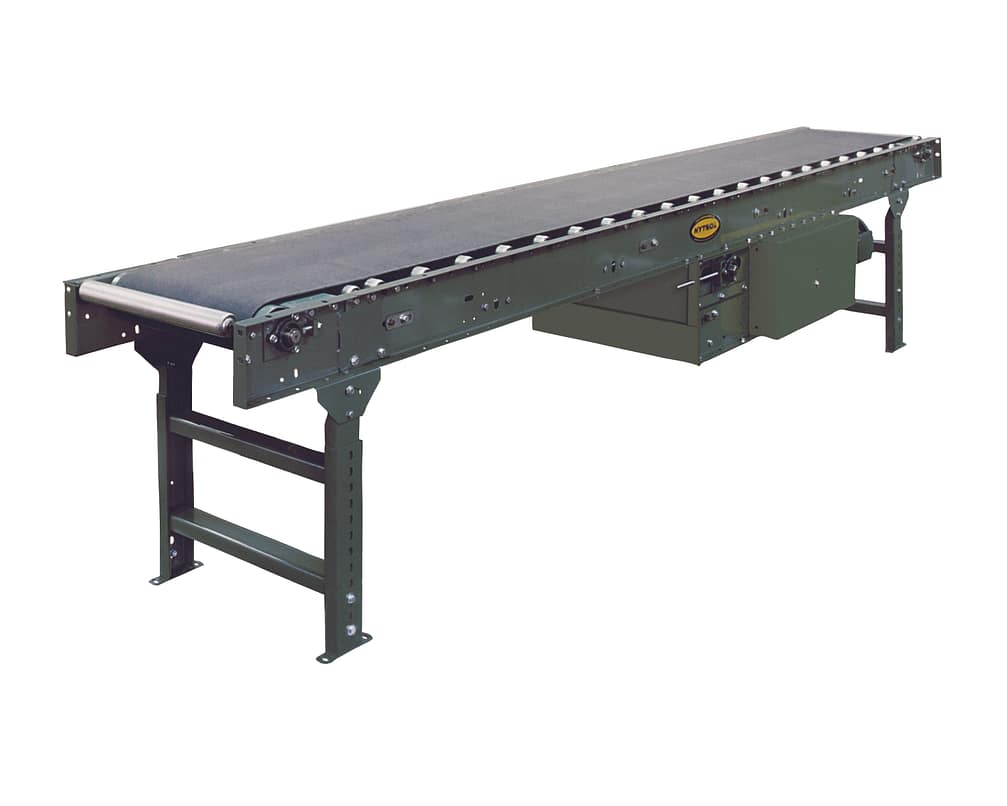

RB Roller Bed Conveyor

Hytrol Conveyor Company is the industry standard for conveyor systems and material handling systems, including roller bed conveyors. Our Model RB Hytrol conveyors are designed to move heavier loads and more durable than traditional slider belt conveyors. By using rollers as the bed surface, roller bed conveyors reduce friction between the belt and the frame. These conveyor systems are great for assembly, inspection, and packing.

Series Specifications

Belting

Ultimate 140 BBS Nitrile

Drive Pulley

8″ diameter with 1-7/16″ diameter shaft at bearings, machine crowned and fully lagged.

Tail Pulley

4″ diameter with 1″ diameter shaft at bearings or 6″ diameter with 1-3/16″ diameter shaft at bearings, machine crowned.

Bed

Roller bed with 1.9″ diameter x 16 ga. galvanized tube rollers spaced every 6″. Mounted in 6-1/2″ x 12 ga. powder-coated formed-steel channel frames, bolted together with splice plates.

Center Drive

The minimum top-of-belt elevation is 17-3/4″ to accommodate the drive. Drive can be placed on any section of the conveyor length. Minimum length without special modifications is 10′. The chain guard is located on the left-hand side.

Take-Up

Take-ups in the center-drive provide 16″ of belt take-up.

Bearings

Sealed, pre-lubricated, self-aligning ball bearings on drive and tail pulleys

Snub Idler

Adjustable 2-1/8″ diameter roller. Pre-lubricated ball bearings, guards included.

Return Idlers

Adjustable 1.9″ diameter rollers, pre-lubricated ball bearings

Belt Speed

65 FPM constant, standard

Motor Drive

1/2HP – 207/230/460/575V, 3PH, 60Hz Totally Enclosed C-Face Motor

Speed Reduction

Sealed worm gear C-Face speed reducer.

Roller Chain

No. 50 roller chain to drive pulley

External Controls

Optional

Warning

Prevent pinch points that exist when belt conveyors are permanently attached to other conveyors! Use connector brackets with safety pop-out roller (other stationary equipment will require proper guarding and safety devices supplied by others).

Technical Drawings

  • RB Roller Bed Horizontal Belt Conveyor
