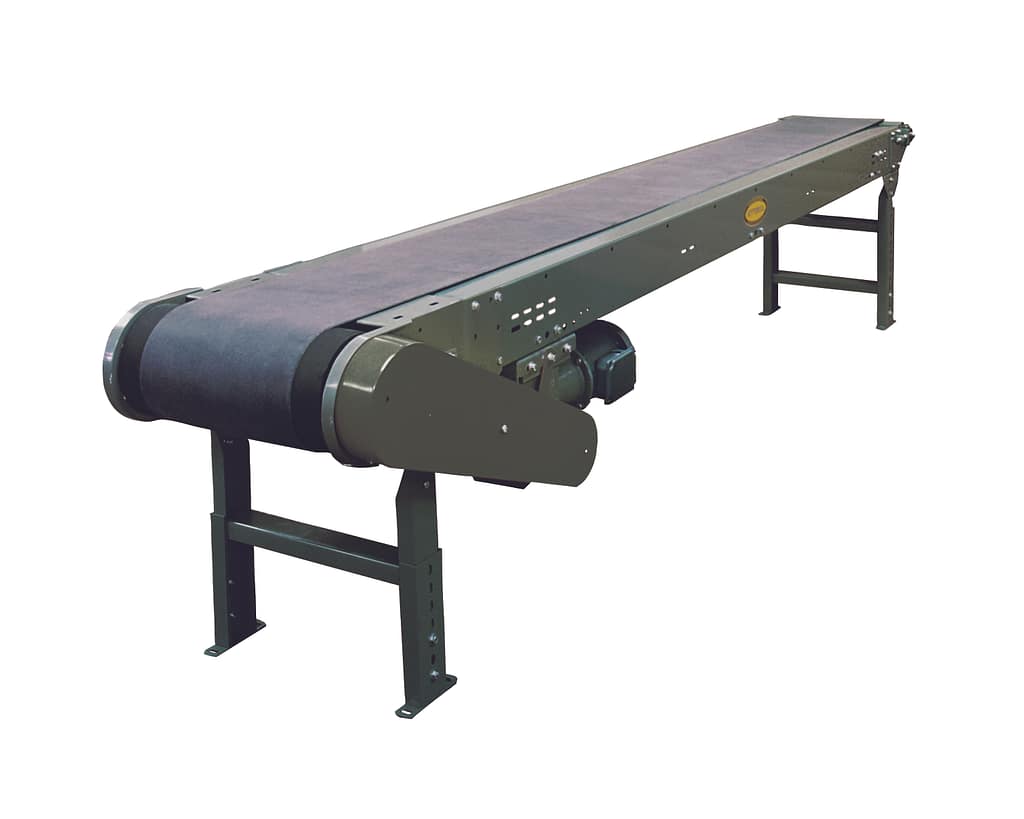

TL Heavy Duty Horizontal Belt Conveyor

Our Model TL conveyors are rugged and heavy duty, their construction makes them ideal for long assembly line operations, inspection stations, testing, sorting, and packing. Model TL belt conveyors can be floor or ceiling mounted.

Series Specifications

Belting

Ultimate 140 BBS Nitrile

Drive Pulley

8″ diameter with 1-3/16″ diameter shaft at bearings, machine crowned and fully lagged

Tail Pulley

6″ diameter with 1-3/16″ diameter shaft at bearings, machine crowned

Bed

6-5/8″ deep x 12 ga. formed steel slider bed, powder coated. Reinforced with 3/4″ pipe which forms sockets for guard rails. Bed sections are standard in 5′ and 10′ length and bolt together with splice plates. 48″ and 51″ bed widths are only available in 5′ lengths.

End Drive

Located on discharge end of conveyor, chain guard on left-hand side

Take-Up

Take-ups at the tail pulley. Provides up to 4″ of belt take-up.

Bearings

Sealed, pre-lubricated, self-aligning ball bearings on drive and tail pulleys

Snub Idler

Adjustable 2-1/8″ diameter roller, pre-lubricated ball bearings

Return Idlers

Adjustable 1.9″ diameter rollers, pre-lubricated ball bearings

Belt Speed

65 FPM constant, standard

Motor Drive

1HP – 207/230/460/575V, 3PH, 60Hz Premium, Energy Efficient C-Face Motor

Speed Reduction

Sealed worm gear C-Face speed reducer.

Roller Chain

No. 50 roller chain to drive pulley

External Controls

Optional

Warning

Prevent pinch points that exist when belt conveyors are permanently attached to other conveyors! Use connector brackets with safety pop-out roller (other stationary equipment will require proper guarding and safety devices supplied by others).

Technical Drawings

  • TL Heavy Duty Horizontal Belt Conveyor
