Rail Wheel Conveyors

Rail wheel conveyors are commonly floor or rack mounted to convey unit loads utilizing an arrangement of two or more rail conveyors mounted parallel. Rail wheel conveyors are lightweight, economical and ship in 24 hours.

Series Specifications

Wheels

1-15/16” Dia. pre-lubricated ball bearing wheel with a hardened raceway, zinc plated, 50 lb. capacity

Rails

12 ga. Galvanized steel rails are formed to several different configurations

Axles

1/4″ Dia. galvanized steel bolt-type axles with lock nuts

Lengths

Available in 1′-0″ increments from 1′-0″ to 10′-0″

Couplings

Optional, available

Wheel Centers

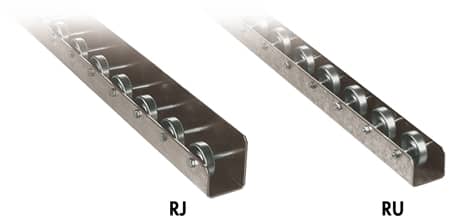

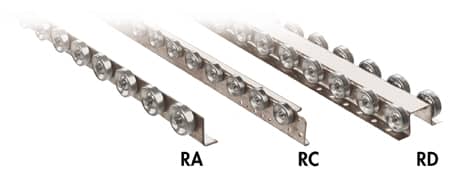

RA, RC, RD, RJ, RU models: 3” centers typical on all patterns.

RCD1.5 & RCD3 models: Wheels provided on 3” centers with model RCD-3; wheels provided on 1-1/2” centers, staggered pattern on model RCD-1.5.

24-hour shipments available for
all 1-foot increments from 1'-0" to 10'–0"
